Auto pre-cut reinforcing mesh welding line

Auto pre-cut reinforcing mesh welding line; Reinforcing mesh welding machine

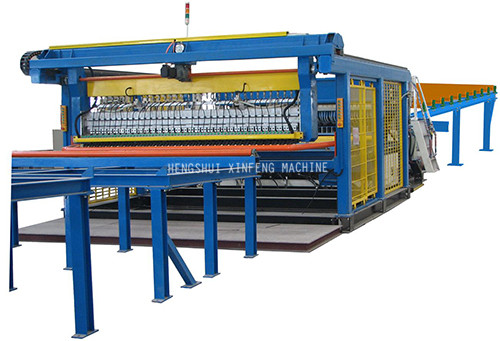

Reinforcing mesh welding machine is the specialized equipment for wire mesh building steel, fence and any other mesh.This machine welds the line wires and cross wires of the steel to be solid mesh in the principle of multi-electrode resistance welding. It consists of welded equipment, line and cross wires feeding device, mesh stepping system, mesh laying and convey device, pneumatic system, electrical control system and cooling system. The material can be rolled ribbed steel wire, cold or hot rolled round steel wire.


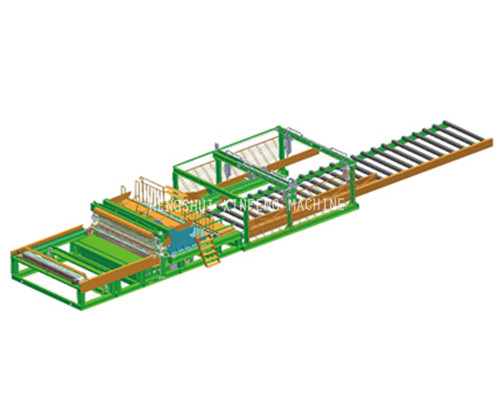

Auto pre-cut reinforcing mesh welding line


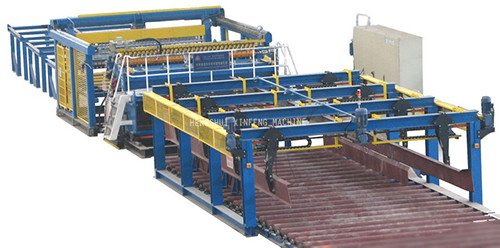

Auto pre-cut reinforcing mesh welding line


Main parameter of Reinforcing mesh welding line:

Model

XF-3/6-2500

XF-5/12-2500

XF-5/12-3300

Diameter

Ф3-Ф6mm

Ф5-Ф12mm

Ф5-Ф12mm

Max mesh width

2500mm

2500mm

3300mm

Welded no.

24

24

32

Capacity of transformer

1000KVA

1600KVA

16×125KVA

Line wire space

50-200mm

100-300mm

100-300mm

Cross wire space

50-200mm

100-300mm

100-300mm

Max. welding frequency

30-65 Times/min

30-60 Times/min

30-60 Times/min

Utilization factor of transformer

30%

30%

30%

Work pressure of pneumatic system

≤0.8Mpa

≤0.8Mpa

≤0.8Mpa

Pressure of cooling water

0.2Mpa-0.3Mpa

0.2Mpa-0.3Mpa

0.2Mpa-0.3Mpa

Consumption of compressed air

≥3M3/min

≥3M3/min

≥3M3/min

Load mode of line wire

Pre-cut; straightness ≤3mm/1000mm

Pre-cut; straightness ≤3mm/1000mm

Pre-cut; straightness ≤3mm/1000mm

Load mode of cross wire

Pre-cut; straightness ≤3mm/1000mm

Pre-cut; straightness ≤3mm/1000mm

Pre-cut; straightness ≤3mm/1000mm

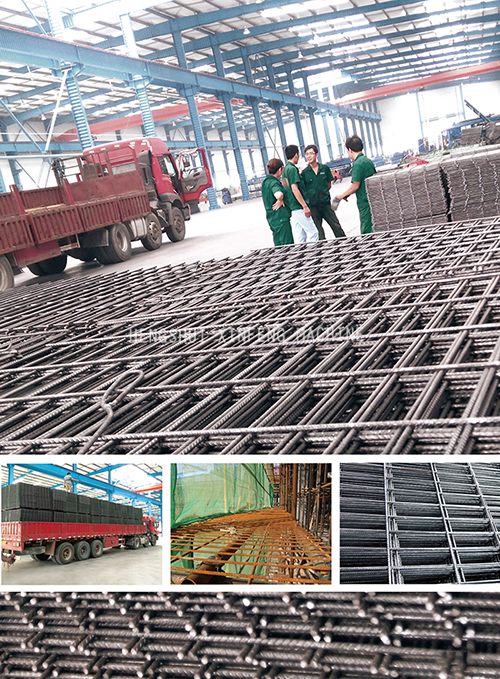

Typical application of welded wire mesh ;
