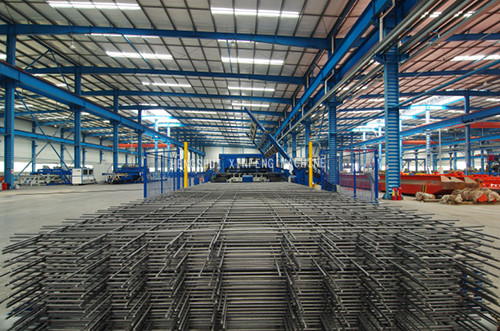

Auto reinforcing mesh welding line

Auto reinforcing mesh welding line(5-12mm)
1 The human machine interface + PLC programmable controller mode control, high degree of automation.
2 can be welded hot-rolled ribbed , rolled ribbed , hot light circle , cold light circle and other materials, and wide adaptability.
3 according to user capacity , using once or welding , flexibility .
4 unit designed for detachable structure, easy adjustment and maintenance specifications .
5 transformers, thyristor upper and lower electrodes , such as welding system using forced water cooling , and a flow protection device , the unit can reliably work continuously .
6 welding pneumatic system pressure infinitely adjustable , quick response to reinforcement specifications transformation.
7 uniform welding pressure to ensure that all the solder joint quality .
8 longitudinal reinforcement from the disc material by straightening straightening institutions , without reprovision straightening equipment.
9 unique feeding mechanism of lift , drag lift off when the mesh electrode to ensure that the electrode life and reduce operating costs.
10. Transverse ribs blanking device uses a stepper motor automatic feeding , reduce labor intensity and improve efficiency.
11 imported digital servo motor system to ensure accurate network size .
12. Mesh size can be transformed by vertical screen input , multi-standard network to adapt to changing needs of the project 13 horizontal bars with a blanking of the magnetic bodies dumped material , blanking speed, high production efficiency.
14 electrode device has in place to ensure that the cross bars blanking reliable and accurate.

15 The unique design ensures replace steel and steel mesh specifications convenient, flexible and fast.








Model

XF-3/6-2500

XF-5/12-2500

XF-5/12-3300

Diameter

Ф3-Ф6mm

Ф5-Ф12mm

Ф5-Ф12mm

Max mesh width

2500mm

2500mm

3300mm

Welded no.

24

24

32

Capacity of transformer

1000KVA

1600KVA

16×125KVA

Line wire space

50-200mm

100-300mm

100-300mm

Cross wire space

50-200mm

100-300mm

100-300mm

Max. welding frequency

30-65 Times/min

30-60 Times/min

30-60 Times/min

Utilization factor of transformer

30%

30%

30%

Work pressure of pneumatic system

≤0.8Mpa

≤0.8Mpa

≤0.8Mpa

Pressure of cooling water

0.2Mpa-0.3Mpa

0.2Mpa-0.3Mpa

0.2Mpa-0.3Mpa

Consumption of compressed air

≥3M3/min

≥3M3/min

≥3M3/min

Load mode of line wire

 By coils

By coils

By coils

Load mode of cross wire

Pre-cut; straightness ≤3mm/1000mm

Pre-cut; straightness ≤3mm/1000mm

Pre-cut; straightness ≤3mm/1000mm
