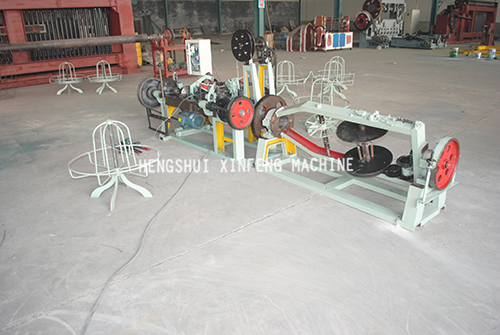

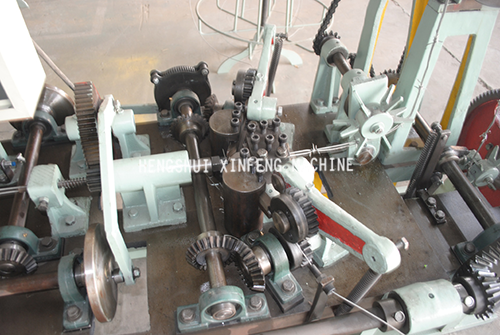

XF-A type barbed steel wire is connected by circle wire and received wire and has four silk plates. All parts work coordinately, move steady, operate rumble and reliable. It is the only equipment of producing barbed steel wire at home at present.
2 the main parameter
The main parameter of XF-A barbed steel wire machine
project | unit | basic parameter |
electric motor | type | Y100L2-4 |
electric motor | KW | 3 |
The circle of main rorating axis | t/min | 402 |
pulling rope speed | t/min | 470 |
the speed of pulling rope | t/min | 134 |
Rotational speed of receiving the rope and disc | t/min | 30-255 |
the part of the main engine | mm | 1900*1300*980 |
the part of receiving rope and twist | mm | 1800*750*750 |

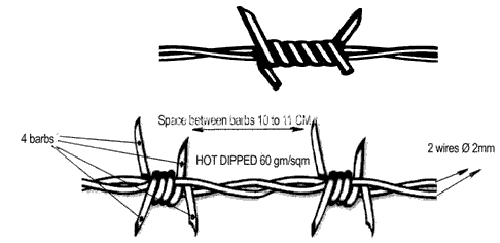

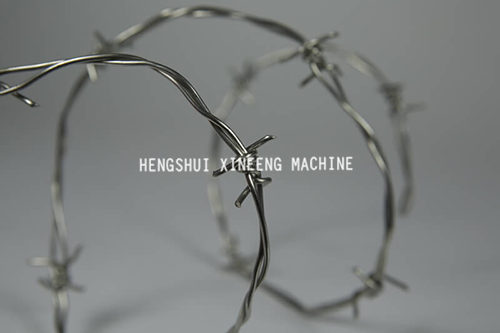

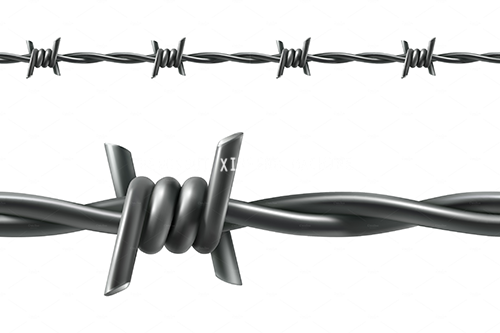

2. the specific of the barbed steel wire | ||
project | unit | basic parameter |
the pun cature distance | mm | 76(3寸) 102(4寸) |
the twist number | a | 4 |
the diameter of sock wire | mm | 2.0-2.8 |
barbed of diameter | mm | 1.8-2.2 |
